Dell Networking N1524 Smart Managed
Dell Networking N1524 Ürününün Özellikleri ve Detayları
Genel Özellikler
Standard Traffic-Port Attributes
Integrated 10GbE SFP+ dedicated ports (beyond standard ports): 4
Integrated GbE SFP combo ports: Not Available
Integrated GbE 10/100/1000BASE-T RJ45 combo ports: Not Available
Integrated 40GbE QSFP+ dedicated ports: Not Available
Modular Traffic-Port Attributes
Hot swappable expansion module bay: Not Available
Module support for 10GbE: Not Available
Module support for 40GbE: Not Available
Support for 40GbE to 4x 10GbE breakout: Not Available
Traffic-Port Features
Auto-negotiation for speed and flow control: Standard
Auto MDI/MDIX: Standard
Port mirroring: Standard
Flow-based port mirroring: Standard
Broadcast storm control: Standard
Energy Efficient Ethernet per port settings: Standard
Port Profile support including Admin profiles: Standard
Management- & Configuration-Port Attributes
1 RJ45 console/management port with RS232 signaling: Standard
1 Out-of-Band (OOB) Management Port (10/100/1000BASE-T): Not Available
1 USB (Type A) port for configuration: Standard
Stacking Attributes
Integrated rear mini-SAS stacking ports: Not Available
User port stacking: Y
Maximum stacking distance (meters): 100
Maximum stacking speed (full-duplex): 40Gbps
Switch Attributes
Line-rate Layer 2 switching: Standard
Line-rate Layer 3 routing: Standard
CPU Memory: 1GB
Flash Memory: 256MB
Packet Buffer Memory: 1.5MB
Dual firmware images on-board: Standard
Temperature sensors for environmental monitoring: Standard
Cable diagnostics: Standard
Optical transceiver (SFP/SFP+) diagnostics: Standard
Switch auditing support: Standard
UDLD: Standard
Chassis
Rack Height: 1U
Rack-mounting kit: Y
ReadyRails™ rack mounting system, no tools required: Not Available
Power & Cooling Hardware
Internal hot swappable power supply bays: Not Available
Hot swappable power supplies (included): Not Available

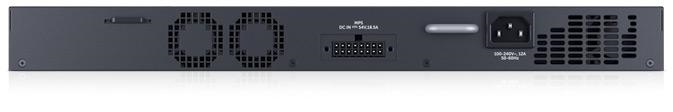

Integrated power supply (not removable): Standard
External power supply: Option Available
Power supply redundancy: Option Available
Removable fans): Not Available
Redundant fans: Standard
Variable speed fans: Standard
Air flow: IO to PSU (Normal)
Environmental Operating Conditions
Operating Temperature in Celsius: 0° to 45° C
Operating Temperature in Fahrenheit: 32° to 113° F
Storage Temperature in Celsius: -40° to 65° C
Storage Temperature in Fahrenheit: -40° to 149° F
Operating Relative Humidity: 95%
Storage Relative Humidity: 85%
Power Supply Efficiency: 80% or better in all operating modes
Optional Features
Modules (optional)
2-port 10 Gigabit BASE-T RJ45 hot swappable uplink module: Not Available
2-port 10 Gigabit SFP+ hot swappable uplink module: Not Available
4-port 10 Gigabit BASE-T RJ45 hot swappable module: Not Available
4-port 10 Gigabit SFP+ hot swappable module: Not Available
2-port 40 Gigabit QSFP+ hot swappable module: Not Available
Power Supplies (optional)
200w, hot swappable, with V-Lock, adds redundancy to non-PoE switches: Not Available
715w, hot swappable, adds redundancy or to power all PoE+ ports fully: Not Available
1100w, hot swappable, adds redundancy or to power all PoE+ ports fully: Not Available
Teknik Spesifikasyonlar
Update your network access
The N1500 switch series offers a power-efficient Gigabit Ethernet (GbE) network-access switching solution with integrated 10GbE uplinks. The N1500 switch series has high-performance capabilities and wire-speed performance, utilizing a non-blocking architecture to handle unexpected traffic loads easily. These switches offer simple management and scalability via a 40Gbps (full-duplex) high-availability stacking architecture that allows management of up to four switches from a single IP address.
Deliver clean power to network devices with PoE+ support
The Dell Networking N1500 Series has options for up to 48 Power-over-Ethernet Plus (PoE+) ports. You can attach devices with high power requirements (up to 30.8 watts) without running a separate power cable. PoE+ is particularly useful in older buildings where installing power to multiple, widespread locations can be prohibitively expensive.
Designed for efficiency
Built to help keep operating costs down, the N1500 Series can operate at temperatures up to 113°F (45°C) to help reduce cooling costs. Improve your overall efficiency with these great features:
80 Plus-certified efficient integrated power supply
Redundant variable-speed cooling fans
Energy-efficient Ethernet and low-power physical layer (PHYs) to help reduce power to inactive ports and idle links
Simplify management with advanced features
The Dell Networking N1500 Series delivers easy deployment, outstanding interoperability and a level learning curve for network administrators. And with Dell Networking OS 6, you maintain consistent configurations across all N-Series products with comprehensive features:
One common command line interface (CLI) and graphical user interface (GUI) that use a well-known command language to help skilled network administrators become productive quickly
USB auto-configuration that helps network administrators rapidly deploy mirrored configurations to numerous devices by simply inserting a USB key
A variety of enterprise-class features with familiar and intuitive configuration and management commands, including the latest open-standard protocols and smart integration technologies to help make smoothly operating multi-vendor networks possible
Deploy with confidence at any scale
With high throughput and capacity to handle unexpected workloads, the N1500 Series switches are ideal solutions for fast-growing GbE networks that require high-density aggregation with seamless redundancy and availability. Take advantage of the following features:
Data rates up to 176Gbps (full duplex) and a forwarding rate of up to 164Mpps

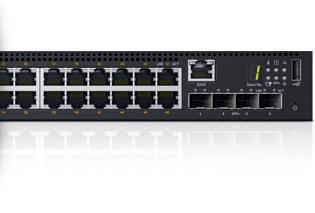

Four 10GbE SFP+ ports for high-speed uplinks and a stacking architecture up to four units at 40Gbps
Switch stacks up to 200 1GbE ports that can be managed from a single screen or IP address
