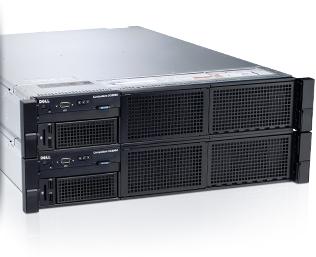

Dell Compellent SC8000 Array Controller

Dell Compellent SC8000 Array Controller Ürününün Özellikleri ve Detayları

ÖZEL FİYAT TEKLİFİ ALIN

Genel Özellikler

Teknik Spesifikasyonlar

Markalar ve Modeller

Genel Özellikler

Technical Highlights

Product OS
Storage Center 6.1 or greater

Array configurations
All-flash, hybrid or HDD arrays
Auto-tiering method
Policy-based migration based on real-time data usage, customizable 512KB-4MB page size

Auto-tiering structure
Up to 3 primary (media-based) tiers total, up to 2 SSD tiers (write- and read-intensive SSDs)

Tiering customizations
User-defined profiles, option to “pin” volumes to any tier

RAID support
RAID 0, 1, 5, 6, RAID 10, and RAID 10 DM (Dual Mirror); any combination of RAID levels can exist on a single array

RAID tiering
Auto-provisions and dynamically restripes multiple RAID levels on the same tier; no need to pre-allocate RAID groups

Thin provisioning
Active by default on all volumes, operates at full performance across all features

Thin snapshots
Records changes only, snapshots auto-migrate to lower-cost storage

Intelligent deduplication1 and compression
Selectable option per volume on SSD and/or HDD tiers
Compression-only option also available

Standard replication
Synchronous/Asynchronous using FC or iSCSI

Federated multi-array systems
Live Migrate (included in base product) enables host-transparent data movement among arrays2
Volume Advisor continually monitors federation to suggest optimal data placement based on customizable capacity or performance load balancing policies
Dell Storage Manager provides data center-level viewpoint and control3

Coexistence with PS Series arrays3
Replication in either direction
Day-to-day management from a single interface
Thin import: space-efficient, non-disruptive data migration from PS Series arrays

Business continuity
Live Volume auto-failover, auto-repair
VMware Metro Stretch Cluster support
Microsoft® Azure Site Recovery

Application data protection
Restore host-side data from array in Oracle, Microsoft or VMware environments

Data-at-rest encryption
Self-encrypting drives (SEDs) in SSD or HDD formats
Full Disk Encryption (FCE) based on AES-256
Drives certified to FIPS 140-2 Level 2
Key Management Server (KMS) options available for FIPS 140-2 Level 1, 2 and 3

External key manager support
Gemalto’s SafeNet KeySecure k460, SafeNet KeySecure k250, SafeNet KeySecure k150v
Thales EMS 200

Management

Management interface
Dell Storage Manager, formerly Enterprise Manager
Multi-array, multi-site, cross-platform management from single interface4

Workload management
QoS1
VVOLs1

Scripting support
SMI-S
Microsoft PowerShell API
RESTful API

Host OS support
Microsoft® Windows Server®, Oracle® Solaris, HP®-UX, Oracle Linux, IBM® AIX®, Novell® NetWare, SLES, Apple, HPTru64, VMware®, Citrix® XenServer®, RedHat®

Third-party application integration
VMware, Oracle, Microsoft, IBM, OpenStack, Symantec, Commvault, Foglight, Docker (see SC Series Management spec sheet for more details)

Certifications
VMware Metro Stretch Clusters
VMware SRM
IBM VIOS Recognized

Reporting/alerts
Support assist (phone home), remote diagnostics and performance monitoring, automated alerts, reports and notifications, departmental chargeback

Scalability

Storage capacity: Up to 960 drives (3PB raw capacity) per dual-controller system; larger capacity available in federated systems5
Memory: Up to 128GB total available cache per dual-controller system; larger cache capacity available in federated systems5
2.5” drives: Up to 24 drives per SC220 expansion enclosure
3.5” drives: Up to 12 per SC200 expansion enclosure, 84 per SC280 expansion enclosure

Processor

Two 2.5GHz 6-core Intel™ processors per controller

Connectivity

Per dual-controller system; multiple systems may be federated5

Front-End Connectivity
Fibre Channel (4Gb, 8Gb, 16Gb), iSCSI (1Gb, 10Gb), FCoE (10Gb)
Simultaneous interface support

Maximum Front-End Ports
16 (Fibre Channel), 10 (1Gb iSCSI), 10 (10Gb iSCSI), 10 (FCoE) per controller. NOTE: SC8000 controller can support up to 16 FC front-end ports with 4-port low-profile SAS back-end IO option.

Back-end Connectivity
SAS (6Gb & 3Gb), Fibre Channel (2Gb, 4Gb, 8Gb)

Maximum Back-End Ports
16 (Fibre Channel), 20 (SAS) per controller – NOTE: No SATA ports, FC and SATA enclosures are connected to FC8 IO card.

Fibre Channel and SATA expansion enclosures connect to SC8000 via Fibre Channel IO expansion card

Storage

Drive Interfaces
SAS and NL-SAS drives. Also backwards compatible with existing Compellent Fibre Channel and SATA drives.
Different drive types, transfer rates and rotational speeds can be mixed in same system

Chassis

Storage Controller
Rack size: 2U
Height: 87.3 mm (3.44 inch)
Width: 482.4 mm (18.98 inch) with rack latches
444 mm (17.08 inch) without rack latches
Depth: 755.8 mm (29.75 inch) with bezel
Weight: 19.73 kg (43.5 lbs)

Rack Support
ReadyRails™ II static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded-hole racks

Environmental Operating Conditions

SC8000 Controller:
Power: Dual, Redundant 750W 80 plus® Platinum certified power supplies
Maximum Power: 425W

Max Heat Dissipation: 1,450 BTU/hr

Operating Temperature: 50 - 95°F (10 - 35°C)
Non-Operating Temperature: -40 - 149°F (-40 - 65°C)
Operating Humidity Ranges (non-condensing): Operating, 20% to 80%
Non-Operating Humidity (non-condensing): 5% to 95%
Inlet Type: NEMA 5-15/CS22.2, n°42

Emissions/Safety

Controller
FCC Class A; EN55022 Class A; EN 61000-3-2/-3-3; CISPR 22 Class A; EN55024/CISPR 24; (EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11); EN60950/IEC 60950 Compliant UL Listed (USA), CUL Listed (Canada), TUV Certified (Germany), CE Marking (Europe)

Teknik Spesifikasyonlar

Optimized performance and efficiency

The Dell Storage SC8000 offers high performance for midsize to large deployments with enterprise processing power and advanced software. The SC8000 can dynamically scale to meet a wide range of business requirements while offering all the effiencies of the SC Series line.
