Dell Storage SC9000 Array Controller

Dell Storage SC9000 Array Controller Ürününün Özellikleri ve Detayları

ÖZEL FİYAT TEKLİFİ ALIN

Genel Özellikler

Teknik Spesifikasyonlar

Markalar ve Modeller

Genel Özellikler

Product Configurations

Storage controller
SC9000 (2U chassis)

Controllers per array
2 (active/active)

Operating system
Dell Storage Center 6.7 or greater

Processor
Dual 3.2GHz, 8-core Intel® processors per controller

Maximum system memory
256GB per controller (512GB total per array)1

Technical Highlights

Array configurations
All-flash, hybrid or HDD arrays
Auto-tiering method
Policy-based migration based on real-time data usage, customizable 512KB-4MB page size

Auto-tiering structure
Up to 3 primary (media-based) tiers total, up to 2 SSD tiers (write- and read-intensive SSDs)

Tiering customizations
User-defined profiles, option to “pin” volumes to any tier

RAID support
RAID 0, 1, 5, 6, RAID 10, and RAID 10 DM (Dual Mirror); any combination of RAID levels can exist on a single array

RAID tiering
Auto-provisions and dynamically restripes multiple RAID levels on the same tier; no need to pre-allocate RAID groups

Thin provisioning
Active by default on all volumes, operates at full performance across all features

Thin snapshots
Records changes only, snapshots auto-migrate to lower-cost storage

Intelligent deduplication and compression
Selectable option per volume on SSD and/or HDD tiers
Compression-only option also available

Standard replication
Synchronous/Asynchronous via FC or iSCSI

Federated multi-array systems
Live Migrate (included in base product) enables host-transparent data movement among arrays2
Volume Advisor continually monitors federation to suggest optimal data placement based on customizable capacity or performance load balancing policies
Dell Storage Manager provides data center-level viewpoint and control3

Coexistence with PS Series arrays3
Replication in either direction
Day-to-day management from a single interface
Thin import: space-efficient, non-disruptive data migration from PS Series arrays

Business continuity
Live Volume auto-failover, auto-repair, VMware Metro Stretch Cluster support, Microsoft® Azure Site Recovery

Application data protection
Restore host-side data from array in Oracle, Microsoft or VMware environments

Data-at-rest encryption
Self-encrypting drives (SEDs) in SSD or HDD formats
Full Disk Encryption (FCE) based on AES-256
Drives certified to FIPS 140-2 Level 2
Key Management Server (KMS) options available for FIPS 140-2 Level 1, 2 and 3

External key manager support
Gemalto’s SafeNet KeySecure k460, SafeNet KeySecure k250, SafeNet KeySecure k150v
Thales EMS 200

Management

Management interface
Dell Storage Manager, formerly Enterprise Manager
Multi-array, multi-site, cross-platform management from single interface4

Workload management
QoS, VVOLs

Scripting support
SMI-S, Microsoft PowerShell API, RESTful API
Host OS support
Microsoft® Windows Server®, Oracle® Solaris, HP®-UX, Oracle Linux, IBM® AIX®, Novell® NetWare, SLES, Apple, HPTru64, VMware®, Citrix® XenServer®, RedHat®

Third-party application integration
VMware, Oracle, Microsoft, IBM, OpenStack™, Symantec™, Commvault®, Foglight™, Docker™ -- see SC Series Management spec sheet for more details

Certifications
VMware Metro Stretch Clusters, VMware SRM, IBM VIOS Recognized

Reporting/alerts
Support assist (phone home), remote diagnostics and performance monitoring, automated alerts, reports and notifications, departmental chargeback

Power

Power supplies
Dual, redundant 1100W 80 PLUS® Platinum certified power supplies

Max power
425W

Inlet type
NEMA 5-15/CS22.2, n°42
Operating voltage
100 to 240 VAC, 50-60Hz, 12A-6.5 Amp

Power supply heat dissipation
Max 4,100 (at 1100W)

Fans
6 hot-swappable fan modules

Storage

Storage format
Block (SAN) and/or file (NAS) from same pool5

Storage media
SAS and NL-SAS drives; different drive types, transfer rates and rotational speeds can be mixed in same system
SSD: Write-intensive, read-intensive (SLC, MLC and TLC formats)
HDD: 15K, 10K, 7.2K RPM

Scalability

Min/max drives
6/960 per array, more in federated systems1
Max raw capacity (SAN)
3PB per array (SSD or HDD), more in federated systems1

Max raw capacity (NAS)
3PB per array with optional FS8600
6PB in single name space (with FS8600 and multiple SC9000 arrays)

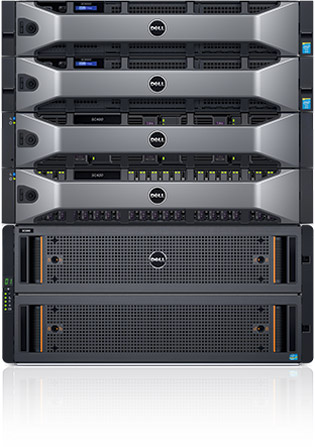

Expansion enclosures
Mix and match from the following options:
SC420 (24 2.5" drive slots, 12Gb SAS)
SC400 (12 3.5" drive slots, 12Gb SAS)
SC280 (84 3.5" drive slots, 6Gb SAS)
SC220 (24 2.5" drive slots, 6Gb SAS)
SC200 (12 3.5" drive slots, 6Gb SAS)

Connectivity

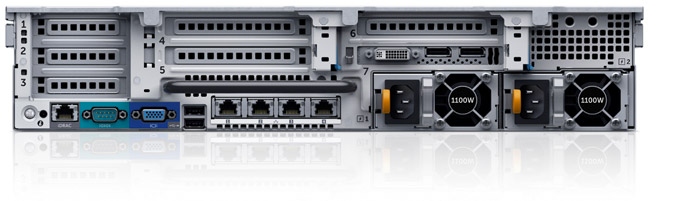

PCIe Gen 3 slots
7 per controller
4 full-height (cache card consumes one), 3 low-profile
Any slot may be used for either front-end network or back-end expansion capacity connections

Front-end network protocols
FC, iSCSI, FCoE (supports simultaneous multiprotocol)

Max 16Gb FC ports
20 per array

Max 8Gb/4Gb FC ports
40 per array

Max 10Gb iSCSI ports
20 per array (SFP+ and BASE-T)
iSCSI DCB
IPv6

Max 1Gb iSCSI ports
20 per array (SFP+ and BASE-T)

Max 10Gb FCoE ports
12 per array

Back-end expansion protocols
12Gb SAS (auto-negotiates to 6Gb)

Max back-end expansion ports
40 per array

Chassis

Dimensions
Height: 2U/87.3 mm (3.44 in)Width: 482.4 mm (18.98 in) with rack latches; 444 mm (17.08 in) without rack latches
Depth: 755.8 mm (29.75 in) with bezel
Weight: 19.73 kg (43.5 lb)

Rack support
ReadyRails™ II static rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded-hole racks

Environmental Operating Conditions

Temperature
Operating: 41º to 104ºF ( 5º to 40ºC )
Non-operating: -40º to 149ºF ( -40º to 65ºC )

Humidity
Operating: 10% to 80% (non-condensing)
Non-operating: 5% to 95% (non-condensing)

Teknik Spesifikasyonlar

Scale, streamline and accelerate your enterprise data center

The SC9000 provides an ideal solution for large-scale storage, high-end workloads and distributed enterprise environments. Our latest flagship array offers all the industry-leading capabilities of the SC Series line in a fully upgraded, more scalable system leveraging Dell’s 13G server platform. Enhancements include:

40% more IOPS,6 over 110% more throughput7
Dual 8-core Intel® Xeons®, 4x system memory
Intelligent deduplication8 and compression
Multi-array federation and auto-failover
Enhanced virtualization and encryption
Cross-platform replication and shared management with PS Series arrays9

The SC9000 is backed by Dell Copilot Services, which combines centralized support, education and sales resources with 24x7 active system monitoring to help improve performance and stability.

Manage storage at the data center level

Although a single SC9000 provides quick, modular expansion to over 3PB raw SAN and/or NAS capacity per array, it can also be interconnected with other SC Series arrays in larger federated systems, elevating and abstracting data control across your environment.

Included Live Migrate “storage hypervisor” feature lets you move volumes non-disruptively between arrays without remapping hosts.10
Included Volume Advisor proactively monitors all arrays for the optimal volume placement, based on customizeable policies.

Flash and hybrid performance powerhouse

Innovative all-flash and hybrid SC9000 solutions can revolutionize the speed and impact of your applications. Intelligent multi-tier SSD capability,11 new 12Gb SAS backend, and a wide range of HDDs and ultra-dense expansion options give SC9000 the power, throughput headroom and ultimate flexibility to meet ever-changing workload demands.

With SC9000, flash becomes practical and cost-effective at any scale, extending its proven competitive advantages to more aspects of your data-driven business.

Always available storage

SC9000 is ideal for non-stop environments such as private cloud deployments. Live Volume provides native business continuity, enabling transparent auto-failover to synchronized backup volumes on another SC series array. Live Volume keeps workloads running during unplanned outages and repairs your high-availability environment automatically when an array comes back online.
